More power than the competition
Best in class batteries that do not require maintenance like some of the competition do.
Best controllers in the industry
Save time and avoid injuries with our hydraulic mast opposed to industry standard hand crank mast
TOWER DIMENSIONS
Length: 16'
Width: 7'
Height: 8' 3"
Weight: 5392
TRAILER DETAILS
Trailer Type: Polyurea Lined Single Axle Trailer
Tire and Rim Size: 15" with 31' premium all-terrain tire
Stabilizer Supports: 4 x manual
Drawbar: Polyurea Lined Fixed or Folding Option
Tow Hitch: 2" Ball / Pintle Ring
Mud Guard/Wheel Chock: Polyurea Lined Integrated w/ Holders
Backup Generator: Optional Wind Turbine
Working Temperature: -76F - 140F
LIGHTING FIXTURE DETAILS
Type of Lights: LED
Lamp Wattage: 100W
Number of Lights: 4
Light Output (Watts) Adjustable 240/400/600
Lumens per Watt: 150
Working Life Hours: 50,000
Light Bar Rotation: 355 Degrees
Light Bar Tilt: Electric Linear Actuator
Mast Raise/Extension: Hydraulic
Mast Height: 30'

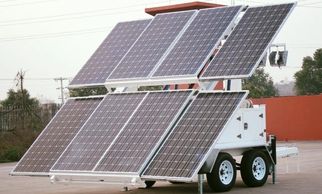

This model generates 2880 watts with its 8 panels. This creates more energy than it consumes during full sunlight. Equipped with a 60-foot mast height and the same 60+ mph wind rating, this is currently the tallest of the four production models that we offer. This is the perfect solution for Communications, Security, and Lighting needs. This unit is also fully customizable allowing for choice of Powder Coating color, back up wind generator, cameras/scanners, cold weather package, folding tow bar, etc.
The Full Trailer Length Heavy Duty fork pockets are constructed of 1/4"x4"x8" 5' long box steel tubing. Adds structural strength to the trailer and durability for forklift loading and unloading.
The convenience hitch is located at the rear center of each unit. While not for towing on public streets, this is designed to assist in movement of multiple towers on the jobsite, event space or other closed property
We have equipped all of our models with standard hydraulic lifting of the primary mast section. This ensures the safest and most durable system available in a towable tower system.
The use of 100% Polyurea liner on the entire frame, undercarriage, wheel wells, chock storage and tow bar is just one more way we can ensure the best performing, longest lasting equipment you can buy.
Our Bulldog, Doberman and Great Dane models can all be equipped with an optional folding tow bar. This is lockable in the stowed or towing position. When in stowed position, this provides another layer of theft prevention.
All of our models come with a standard parking brake. When combined with the standard disc brakes, you achieve an unparalleled level of added safety.
10 Year: Solar Panels · LED Light Fixtures (Drivers excluded)
5 Year: WatchDog LiPo4 Battery
3 Year: Frame · Axle · Tow bar · Hitch · Disc Brakes · Solar panel sliding rail
2 Year: LED Light Drivers
1 Year: Electrical · Hydraulics · Cables · Hardware and fittings · Computer · Charge Controller · Inverter (if included) · Wheels excluding tires
Exclusions from Warranty: Wheel Chocks · Brakes · Tires · Fire Extinguisher · Normal wear and tear as defined in the Warranty
