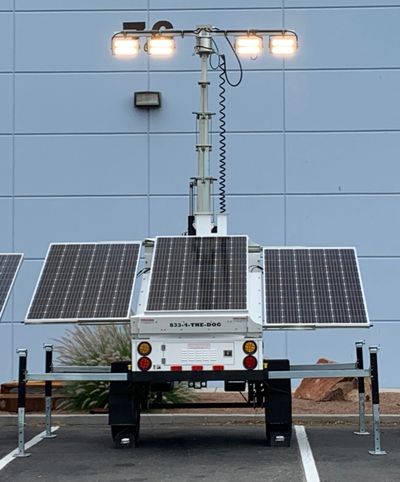

BULLDOG STANDARD SLT1650-30 OPTIONS
1. 3 x 550W Solar Panels (1650W total)
Solar Light Tower with MORE power than the competition
2. 1 x 25.6V 600Ah/LiFePO4 Battery (15.5 kWh)
Best in class batteries that do not require maintenance like some competitors solar equipment and solar light towers.
4. 24/48 Volt System
Best controllers in the industry
5. 30' Hydraulic Mast
Save time and avoid injuries with our hydraulic mast opposed to industry standard hand crank mast
TECHNICAL SPECS:
TOWER DIMENSIONS
Length: 13' 6"
Length (Tow Bar Folded) 8' 0'
Width: 5' 11"
Height: 10' 0"
Weight: 3200
TRAILER DETAILS
Trailer Type: Polyurea Lined Single Axle Trailer
Tire and Rim Size: 15" with 31' premium all-terrain tire
Stabilizer Supports: 4 x manual
Drawbar: Polyurea Lined Fixed or Folding Option
Tow Hitch: 2" Ball / Pintle Ring
Mud Guard/Wheel Chock: Polyurea Lined Integrated w/ Holders
Backup Generator: Optional Wind Turbine
Working Temperature: -76F - 140F
LIGHTING FIXTURE DETAILS
Type of Lights: LED
Lamp Wattage: 100W
Number of Lights: 4
Light Output (Watts) Adjustable 240/400/600
Lumens per Watt: 150
Working Life Hours: 50,000
Light Bar Rotation: 355 Degrees
Light Bar Tilt: Electric Linear Actuator
Mast Raise/Extension: Hydraulic
Mast Height: 30'
BULLDOG
Narrow Deployed Footprint
Narrow Deployed Footprint
Narrow Deployed Footprint
This model allows for a deployed width of 9'9", 39" narrower than the DOBERMAN model. This system is a great platform for Communications, Security, and Lighting needs. This unit is also fully customizable allowing for choice of powder coating color, back up wind generator, cameras/scanners, cold weather package, folding tow bar, etc.
Compact Stowed Footprint
Narrow Deployed Footprint
Narrow Deployed Footprint
Compact footprint of 5'11" nears that of a traditional dirty diesel light tower. This allows for more efficient transport and storage of your solar tower fleet.
Hydraulic Mast
Narrow Deployed Footprint
Hydraulic Mast
We have equipped all of our models with standard hydraulic lifting of the primary mast section. This ensures the safest and most durable system available in a towable tower system.
Durability
Fire Extinguisher Mount Option
Hydraulic Mast

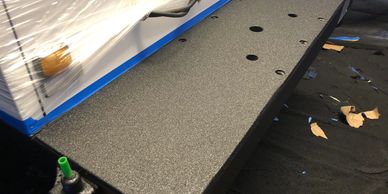

The use of 100% Polyurea liner on the entire frame, undercarriage, wheel wells, chock storage and tow bar is just one more way we can ensure the best performing, longest lasting equipment you can buy.
Folding Tow Bar Option
Fire Extinguisher Mount Option
Fire Extinguisher Mount Option
Our Bulldog, Doberman and Great Dane models can all be equipped with an optional folding tow bar. This is lockable in the stowed or towing position. When in stowed position, this provides another layer of theft prevention.
Fire Extinguisher Mount Option
Fire Extinguisher Mount Option
Fire Extinguisher Mount Option

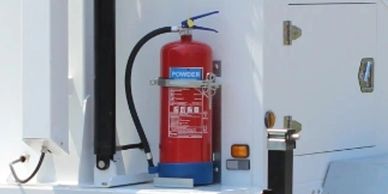

All of our models can be equipped with an optional fire extinguisher mount.
